Large Scale Deep Learning

• Distributed Storage Systems, network communications
• Use rotational drives instead of NVMe cheaper
• node-to-node communications become an issue.
• Storage is on distributed systems, this is only reachable over network.
• Weight Sync is done using pytorch
• Need Fast I/O - this is the hardest part.
• Read from Disk -> Memory -> Network card -> compute node network card -> memory -> GPU
• Some parts are scalable, other’s aren’t. Can’t just double memory bus’s bandwidth.
• optimal = 100% utilization of most expensive part (GPU)
• GPUs consume 200-1000 MB per second.
• nvidia-smi shows gpu utilization.
• smaller datasets can fit on NVMe drive, which transfers at 3 GB/second, easily keeping 4 desktop GPUs busy.
• Example: 100 TB, 16 GPUs, 200 MB/s/GPU
  • NVMe:
    • $35,000 alone for storage
    • 300 GB/s
    • cant fit in one machine
  • Rotational
    • 8 TB, 16, $320
    • 3.2 GB/s bandwidth
    • can fit into 1-2 machines

      Key Principles

• Sequential I/O
• Pipelining
• Sharding

Sequential IO

• PyTorch, file-based - access samples in random order.
  • random access requires moving the disk head, loading, moving again.
  • 20 MB per second (on rotational)
• Sequential IO
  • Make a .tar archive of all the examples in the dataset
  • reads are sequential.
  • IterableDatasets
  • 200 MB/s read speeds (on rotational)
  • in-memory shuffle buffer:
    • while True:
      • sample = next(dataset)
      • index = randint(0, len(buffer)-1)
      • sample, buffer[index] = buffer[index], sample
    • basically, the buffer does all the shuffling for us. We read examples sequentially into a buffer, and then randomly sample from that buffer. Each time we feed a sample from the buffer to the model, its spot in the buffer getsw replaced by the next thing on disk. All reads from disk are sequential.
    • better for network storage
  • TFRecord/tf.Example, Google GFS, Hadoop, FORTRAN

    Pipelining

• make one request, many examples flow
• possible with sequential storage.
• Caching? Doesn’t help in deep learning, since we iterate through the entire epoch

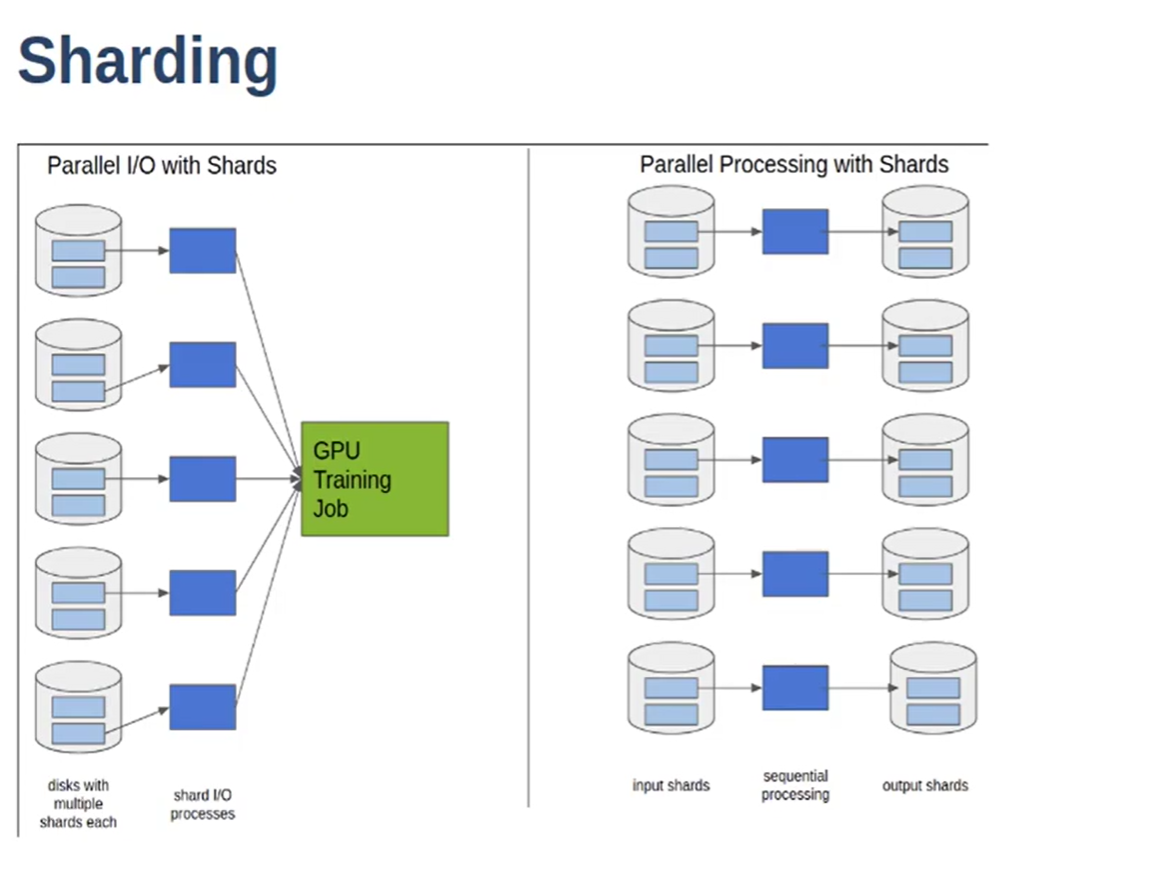

Sharding

• 100 TB file, read sequentially. 200 MB/s IO
• All reading is sequential.
• Sharding - 100 TB dataset, split it up into 10,000 shards of 10 TB each.
• access shards randomly - read shards in random order, read each shard sequentially with in memory buffer for shuffling.

Three Tiers

• Dataservers send data to CPU nodes, which do preprocessing. These are then sent to the GPU.
• RDMA based transfers from CPU to GPU. stops PCI bus as bottleneck.
• combine the middle tier into the storage system (AIStore, NVIDIA).
• HDFS can be difficult to configure, it was designed for big data.

Last Reviewed: 5/1/25
